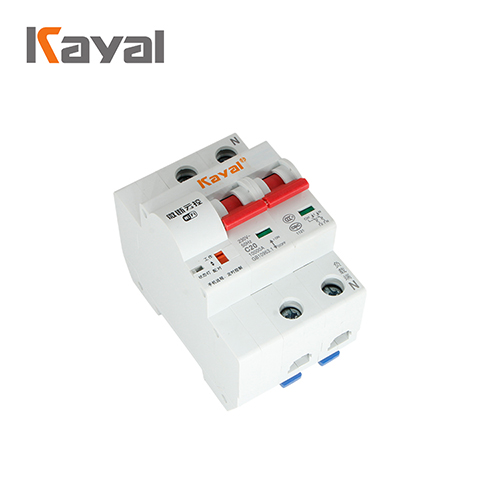

Wifi Smart Circuit Breaker
Application
Remote intelligent control of homes, student dormitories, enterprises, municipal works, street lamps, farms, rental houses, water pumps, floor heating, water heaters, etc.
Feature
WiFi Intelligent Circuit Breaker is suitable for AC 50/60Hz, rated voltage 230V/400V, rated current to 125A line for protection against overload, short circuit and isolation; also as a smart reclosing breaker, also has a function of mobile phone worldwide remote control on/off circuit, timing on/off circuit, delay on/off circuit, cycle on/off circuit.
Technical Parameters
| Standards Compliant | GB10963.1;IEC60898-1 |
| Rated Voltage | AC 230V 1P/2P, AC 400V 3P/4P |
| Frequency | 50/60Hz |
| Number of poles | 1P 2P 3P 4P |
| Pollution Level | II |
| Protection Level | IP20 |
| Installation Category | II III |
| Specified Use Temperature | -25℃ ~ + 65℃ |
| Rack Rated Current | 125A |
| Rated Current | 32A, 40A, 63A, 80A, 100A, 125A |
| Instantaneous Trip Type | C |
| Rated Short-circuit Breaking Capacity | 10KA |
| Rated Impulse Withstand Voltage | 6KV |
| Mechanical life | > 10,000times |
| Electrical life | > 6,000times |
Application
Remote intelligent control of homes, student dormitories, enterprises, municipal works, street lamps, farms, rental houses, water pumps, floor heating, water heaters, etc.
Feature
WiFi Intelligent Circuit Breaker is suitable for AC 50/60Hz, rated voltage 230V/400V, rated current to 125A line for protection against overload, short circuit and isolation; also as a smart reclosing breaker, also has a function of mobile phone worldwide remote control on/off circuit, timing on/off circuit, delay on/off circuit, cycle on/off circuit.
Technical Parameters
| Standards Compliant | GB10963.1;IEC60898-1 |
| Rated Voltage | AC 230V 1P/2P, AC 400V 3P/4P |
| Frequency | 50/60Hz |
| Number of poles | 1P 2P 3P 4P |
| Pollution Level | II |
| Protection Level | IP20 |
| Installation Category | II III |
| Specified Use Temperature | -25℃ ~ + 65℃ |
| Rack Rated Current | 125A |
| Rated Current | 32A, 40A, 63A, 80A, 100A, 125A |
| Instantaneous Trip Type | C |
| Rated Short-circuit Breaking Capacity | 10KA |
| Rated Impulse Withstand Voltage | 6KV |
| Mechanical life | ＞ 10,000times |
| Electrical life | ＞ 6,000times |
