Product Description
SPECIFICATION
| TYPE | reted | Rated | rated | rated | controlled power KW | Electrical | contacts | ||||
| woring | heat | working | insulated | ||||||||
| currentA | current | voltage UeA | voltage UiA | life (AC-3)104 | number | ||||||
| IeA (AC-3) | Ith(A) | 220V | 380V | 415V | 440V | 660V | |||||
| LP1-D09 | 9 | 20 | 380v 660v | 660v | 2.2 | 4 | 4 | 4 | 5.5 | 660V | |
| LP1-D12 | 12 | 20 | 3 | 5.5 | 5.5 | 5.5 | 5.5 | ||||
| LP1-D18 | 18 | 32 | 4 | 7.5 | 9 | 9 | 9 | ||||
| LP1-D25 | 25 | 40 | 5.5 | 11 | 11 | 11 | 11 | 3P+NO | |||
| LP1-D32 | 32 | 50 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NC | |||
| LP1-D40 | 40 | 60 | 11 | 18.5 | 22 | 22 | 30 | ||||
| LP1-D50 | 50 | 80 | 15 | 22 | 25 | 30 | 33 | 3P+NO+NC | |||
| LP1-D65 | 65 | 80 | 18.5 | 30 | 37 | 37 | 37 | ||||
| LP1-D80 | 80 | 125 | 22 | 37 | 45 | 45 | 45 | ||||
| LP1-D95 | 95 | 125 | 25 | 45 | 45 | 45 | 45 |
SPECIFICATIONS
| Type | Rated working | AC-3 use | Contact | |||
| current A(380v) | group | data(1) | ||||
| Control | ||||||
| power KW | ||||||
| 220V | 380/415V | 440/500V | 600V | |||
| LC1-K06 | 6 | 1.5 | 2.2 | 3 | 3 | 3P+NC |
| 3P+NO | ||||||
| LC1-K09 | 9 | 2.2 | 4 | 4 | 4 | 3P+NC |
| 3P+NO | ||||||
| LC1-K12 | 12 | 3 | 5 | 5 | 5 | 3P+NC |
| 3P+NO | ||||||
| Specification/Type | LC1-K06 | LC1-K09 | KC1-K12 | |||
| Use group under AC-3 | 6 | 9 | 12 | |||
| Rated working current(Ie)A | 5 | 7.5 | 10 | |||
| Conventional thermal | 16 | 20 | 20 | |||
| current(Ith)A | ||||||
| Rated working voltage(Ue)V | 380 660 | |||||
| Rated insullation voltage(Ui)V | 690 | |||||
| AC-3 | Electrical | 0.5*106 | ||||
| life(times) | ||||||
| (6Ie Ie) | Operation | 1200 | ||||
| frequency h-1 | ||||||
| AC-4 | Electrical | 10*104 | ||||
| life(times) | ||||||
| (6Ie Ie) | Operation | 300 | ||||
| frequency h-1 | ||||||
| Mecnical life | 3*106 | |||||
| Auxiliary contact | Conventional | 6A | ||||
| thermal current | ||||||
| Electrical life | AC-15(360VA) | 0.5*10 | ||||
| (times) | DC-13(13W) | |||||
| Coil specification | Rated control | AC:12,24,45, | ||||
| voltage(Us) | 110220380 | |||||
| DC:12,24,45, | ||||||
| 110220 | ||||||
| Pick-up voltage | AC: | |||||
| 0.85~1.1Us | ||||||
| DC: | ||||||
| 0.85~1.1Us | ||||||
| Releasing voltage | AC: | |||||
| 0.1~0.75Us | ||||||
| DC: | ||||||
| 0.2~0.75Us | ||||||
| Coil power VA | Pick-up | 40 | ||||
| Retain | 4 | |||||
| Consumption | 1.2W | |||||
| Pick-up time | 6~18ms | |||||
| Releasing time | 5~23ms | |||||
| Power factor | Making | |||||
| 0.8 | ||||||
| Breaking | ||||||
| 0.3 |
Application

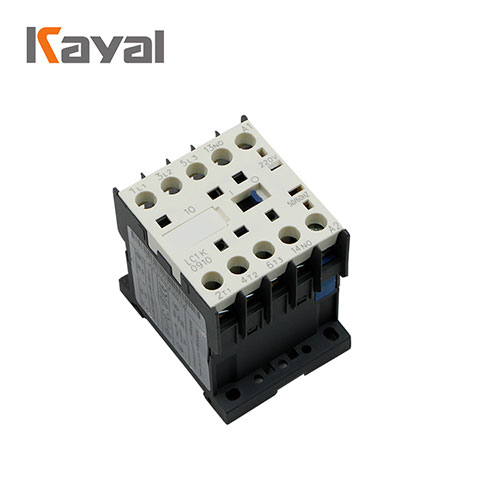

LC1-K / CJX2-K series AC contactor is mainly used in AC 50HZ or 60HZ, rated insulation voltage 690V, in AC-3 use category when rated voltage of 380V rated current to 12A circuit, for long-distance making and breaking circuit purposes, and with the appropriate electromagnetic thermal overload relays to protect the possible overload of the circuit operation, contactor suitable for frequent starting and controlling AC motor.It conforms to IEC60947-4-1.
