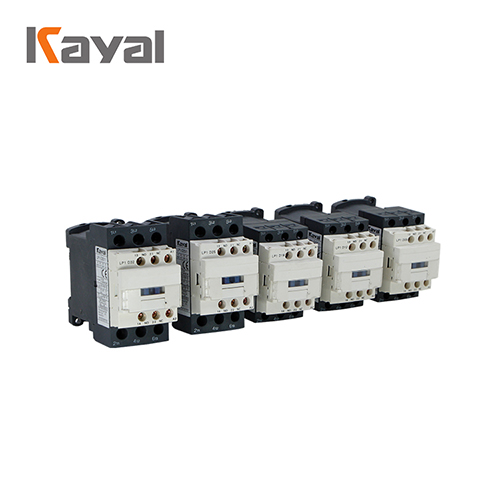

product description
suitable for using in the circuits up to the rated vltage 660v ac 50/60hz rated current up to 95a,for making ,frequently starting and machine interlocking device,it becomes the delay the contactor,mechanical interlocking contactor star-delta starter,with the thermal relay, it is combined into the eletromagnetic starter.the contactor is roduced according to IEC947-2,VDE 0660&BS5452.
technical parameter
| Product name | High quality | ||||||||||
| 24 42 48 110 | |||||||||||
| 220 230 240 | |||||||||||
| 380 400 415 | |||||||||||
| 440 500 600 | |||||||||||
| Volts | |||||||||||
| LC1-D95 | |||||||||||
| ac contactor | |||||||||||
| Type | LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 | LC1-D40 | LC1-D50 | LC1-D65 | LC1-D80 | LC1-D95 | |
| Rated working | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| current (A) | |||||||||||
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Standardpower | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| ratings of 3 | 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| phase motors | |||||||||||
| 50/60Hz | 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 |
| incategory | 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 |
| AC-3 | 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 |
| Rated heat | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
| current (A) | |||||||||||
| Electrical life | AC3 (x104) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| AC4 (x104) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
| Mechanical | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
| life (x104) | |||||||||||
| Number of | 3P+NO | 3P+NC+NO | |||||||||
| the contacts | 3P+NC |
Technical Data
1.Rating
| Model | Utilization category | UI(V) | Ue(V) | Conventional heating current | Ie(A) | Controlled power(KW) |
| CT-20 | AC-1 AC-7a | 500 | 230 | 20 | 20 | 4 |
| CT-20 | AC-7b | 500 | 230 | 20 | 9 | 1.2 |
| CT-40 | AC-1 AC-7a | 500 | 400 | 40 | 40 | 40 |
| CT-63 | AC-1 AC-7a | 500 | 400 | 63 | 63 | 40 |
2.Making and breaking capacity
| Model | Utilization category | Making and breaking conditions | Electrification | Interval time(s) | ||
| Ic/Ie | Ur/Ue | COSø | time(s) | |||
| CT-20 | AC-1 AC-7a | 1.5 | 1.05 | 0.8 | 0.05 | 10 |
| CT-20 | AC-7b | 8 | 1.05 | 0.45 | 0.05 | 10 |
| CT-63 | AC-1 AC-7a | 1.5 | 1.05 | 0.8 | 0.05 | 10 |
