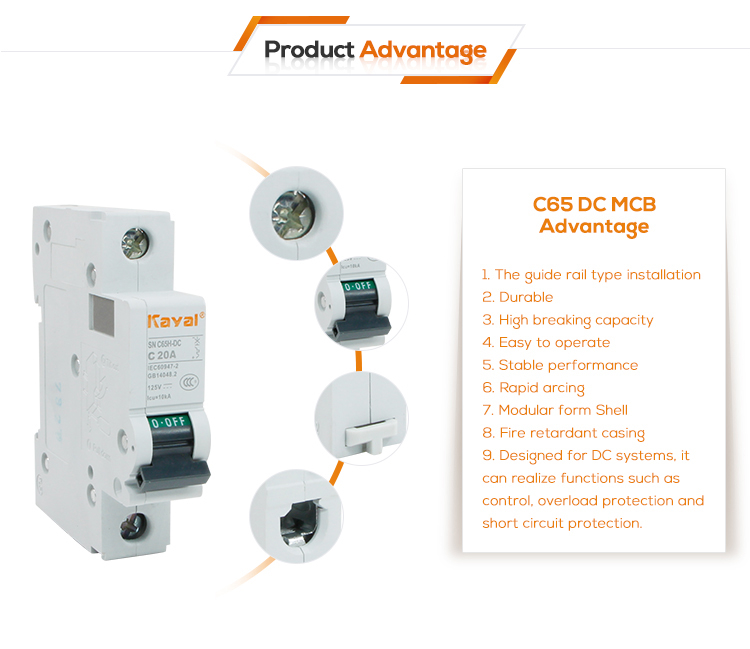

Product Description
1.C65 DC miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 1A to 63A. It also can be used for non-frequent on-and-off switch operation under normal circumstance.
2.In complicance with IEC/EN60898-1
3.With indicator function in the contact position.Bilateral busbar wiring capabilities to adapt to the wider use of premises.Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
Protection calss: IP20
4.Breaking Capacity: 10000A
| DC MCB Parameters: | |
| Item | C65 DC MCB |
| Pole | 1P,2P,3P,4P |
| Rated Current In | 1A,3A,6A,10A,16A,20A,32A,40,50A,63A |
| Rated Operating Voltage | DC12V-DC1200V |
| Standard | IEC/EN60947 |
| Breaking Capacity | 10KA |
| Characteristic Curve | B,C,D |
| Working Temperature | -5℃ to +40℃ |
| Protection Degree | IP20 |
| Installation | 35MM DIN RAIL |
