Product Description
Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.

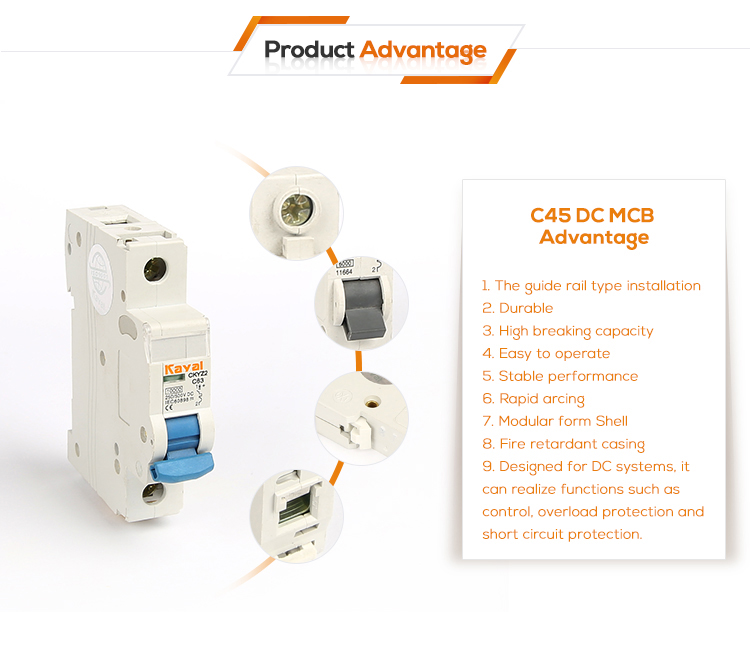

DC MCB Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic
DC MCB Parameters:
| Item | DC MCB | |||
| Pole | 1P | 2P | 3P | 4P |
| Voltage | 300VDC | 600VDC | 900VDC | 1200VDC |
| Current | 1A,3A,6A,10A,16A,20A,32A,40,50A,63A | |||
| Standard | IEC/EN60947 | |||
| Breaking Capacity | 6KA,10KA | |||
| Characteristic Curve | B,C,D | |||
| Working Temperature | -5℃ to +40℃ | |||
| Protection Degree | IP20 | |||
| Electrical life | More than 8000times | |||
| Mechanical life | More than 2000times | |||
| Dimension(W)X(H)X(D) | 18X80X71 | 36X80X71 | 54X80X71 | 72X80X71 |
| Installation | 35MM DIN RAIL | |||
| Accessory | YES | |||
| Installation Altitude | ≤2000M |
