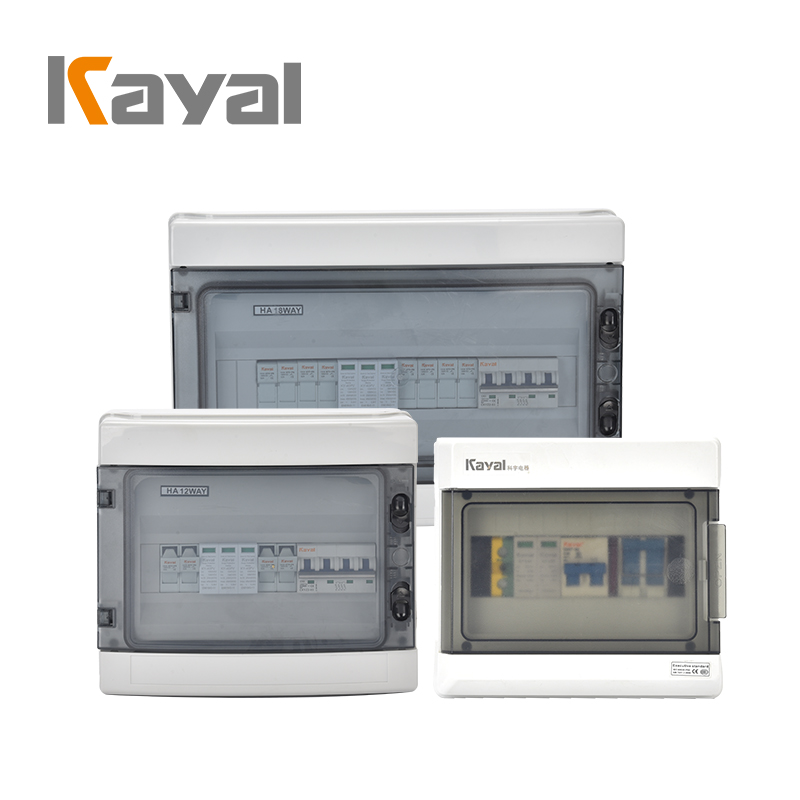

KYCD-2 combiner box is suitable for inverter (MAX input voltage DC550V/DC1000V,4PV input channel, 2 output channel, single MPPT inverter). Box body is made of PVC engineering materials,with test for fire retardant, Temperture rise,anti impact, anti ultraviolet, and other testing. IP65 protection grade.
Design and configuration strictly accordance with the "Technical specification for photo-voltaic junction equipment'' CGC/GF 037:2014.
Provide users with a safe, brief, beautiful and applicable photo-voltaic system products.
Product Parameters
| Name | KYCD-2 | KYCD-2 |
| System maximum dc voltage | 550 | 1000 |
| Maximum input current for each string | 15A | 15A |
| Maximum input strings | 2 | 2 |
| Maximum output switch current | 20A/32A | 20A/32A |
| Number of inverter MPPT | 2 | 2 |
| Number of output strings | 2 | 2 |
| Category of test | Ⅱgrade protection | Ⅱgrade protection |
| Nominal discharge current | 20ka | 20ka |
| Maximum discharge current | 40ka | 40ka |
| Voltage protection level | 2.8kv | 3.8kv |
| Maximum continuous operating voltage Uc | 630V | 1050V |
| Poles | 2P | 3P |
| Structure characteristic | Plug-push module | Plug-push module |
| Protection grade | IP65 | IP65 |
| Output switch |
DC isolation switch(standard) /DC circuit breaker(optional) |
DC isolation switch(standard) /DC circuit breaker(optional) |
| SMC4 Waterproof Connectors | Standard | Standard |
| PV dc fuse | Standard | Standard |
| PV surge protector | Standard | Standard |
| Monitoring module | Optional | Optional |
| Preventing diode | Optional | Optional |
| Box material | Metal | Metal |
| Installation method | Wall mounting type | Wall mounting type |
| Operating Temperature | -25℃--+55℃ | -25℃--+55℃ |
| Elevation of temperature | 2km | 2km |
| Permissible relative humidity | 0-95%, no condensation | 0-95%, no condensation |
High reliability
1. With DC FUSE
2. With DC Surge Protection Device
3. With DC circuit breaker or DC load isolation switch.
Strong adaptability
1. IP65 design,waterproof,anti dust and anti ultraviolet.
2. Strict test for high and low temperature,used widely/
3. The simple installation, the simplified system wiring, the convenient wiring.
4. The box body is made of cold rolled steel and other metal materials.
Flexible configuration
5. Used for single crystal silicon solar modules, poly crystalline silicon solar modules, thin film solar modules. Current rating of the photostatic fuse, circuit breaker, load isolation switch is modified.
