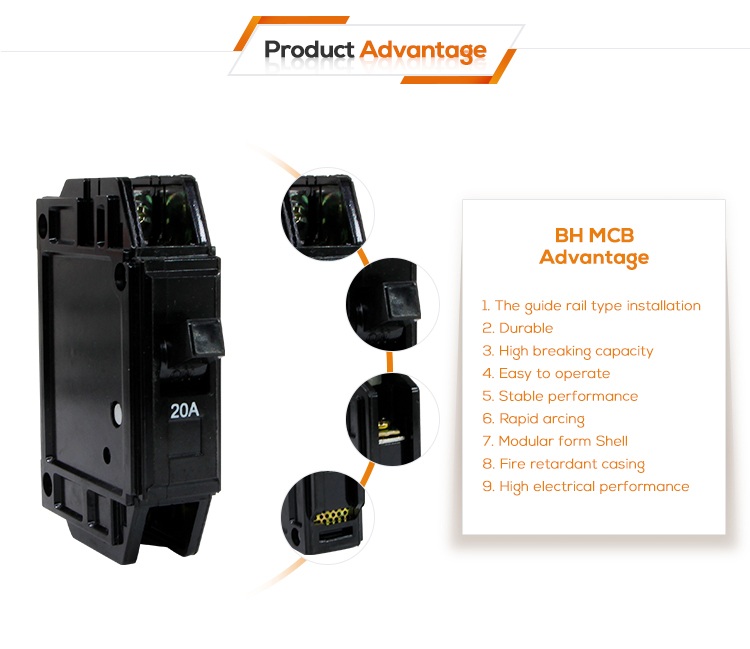

Specification and feature:

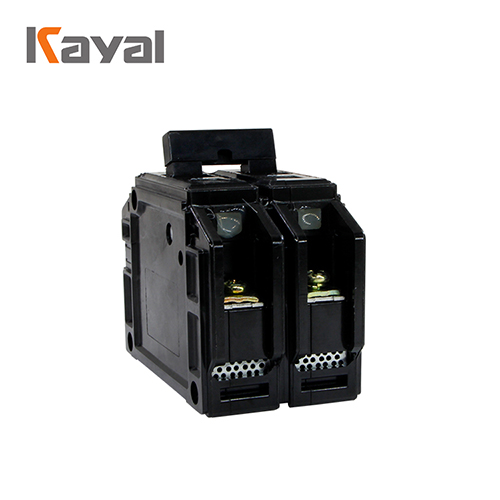

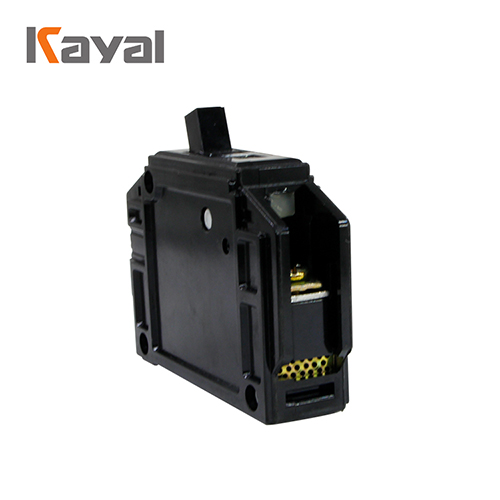

BH series miniature circuit breaker is characteristic of small size, light weight, novel structure and exccellent performance. They are mounted in the illuminating distribution board and used in guesthouses,block of flats, high buildings squares, airports, railway stations, plants and enterprises ect, in AC circuits 240V (Single pole) up to 415V (3 pole) 50Hz, for protection of overload short circuit and for circuit chang-over in lighting system. Breaking capacity is 3KA.
| Standard | IEC60898 |

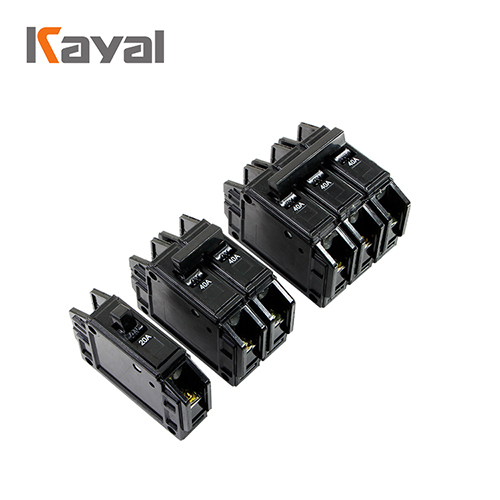

| Number of Poles | 1P, 2P, 3P |
| Rated Current (A) | 6, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100 |
| Breaking Capacity (A) | 3000 |
| Rated Voltage (V) | 110/220 (1P), 240/415 (2P), 415 (3P) |
| Rated Frequency | 50/60Hz |
| Electrical Life (Times) | no less than 6000 operations |
| Mechanical Life (Times) | (O-C) no less than 16000 operations |
