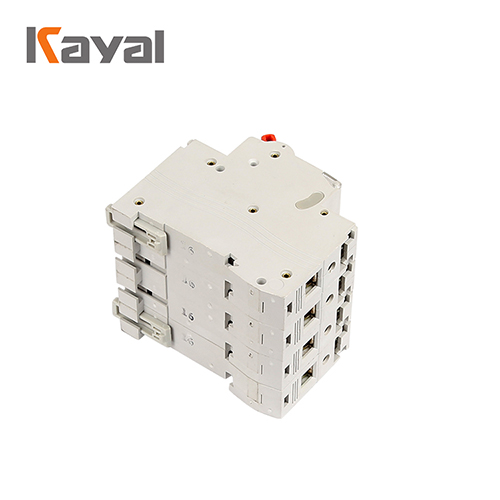

APPLICATION
CKYL1-63 RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk, thus, it is suitable to avoid the shock hazard and fire caused by earth leakage.
The RCCB is mainly suitable for use in varieties of plants and enterprises, building construction 1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use in DC pulse system.
SPECIFICATIONS
| Product name | 30ma rccb 4.5ka 6ka elcb 4 pole earth leakage circuit breaker |
| Number of Poles | 1P+N,3P+N |
| Rated Current(A) | 16,20,25,40,50,63 |
| Rated Residual Operating Current(IΔn)(mA) | 30100300500 |
| Rated Voltage(V) | AC 230/240 |
| AC400/415 | |
| Residual Operating Current Scope | 0.5IΔn~IΔn |
| Residual Current Off-time | ≤0.3S |
| Short Circuit Capacity(Icu) | 6000A |
| Endurance | 4000 |
| Protection Degree | IP20 |
NORMAL OPERATION AND MOUNTING REQUIREMENT
Circumstance temperature-5°C~+40 ,average temperature not exceeding 35 .
Altitude above sea level less than 2000m.
Humidity not exceeding 50% at 40°Cand not exceeding 90% at 25°C.
Installation class Ⅱ or Ⅲ.
Pollution class Ⅱ.
Installation method DIN Rail mounting type.
The external magnetism shall not be more than 5 times of terrestrial one.
Product shall be installed vertically at the place where there shall be no severe impact and
vibration. The product is switched on when the handle is at upper position.
